T500 Towable Boom Lift
Platform Height: 50 ft (15.24 m)
Working Height: 56 ft (17.07 m)
Horizontal Outreach: 30 ft (9.14 m)
Platform Capacity: 500 lbs (227 kg)
Platform Size: 2 ft 6 in x 4 ft (0.76 m x 1.22 m)
Power Source: 24V DC (four 6V batteries)
Optional: Gas or diesel-powered hydraulic power pack
Drive: Manual tow (not self-propelled)
Outrigger Leveling: Automatic self-leveling
Outrigger Footprint: ~14 ft x 14 ft (4.27 m x 4.27 m)
Towing Speed Rating: Up to 60 mph (96.5 km/h)
Weight: ~4,400–5,400 lbs (1,995–2,450 kg)
Length (stowed): ~24 ft (7.3 m)
Height (stowed): ~6.5 ft (2 m)
Width: 5 ft 6 in (1.68 m)
Turn Radius: N/A (towed)
Jib: 4 ft (1.22 m) articulating jib (standard)
Optional Features:
Hydraulic tool circuit
Platform rotator
Flashing beacon
Air line to platform
Non-marking tires

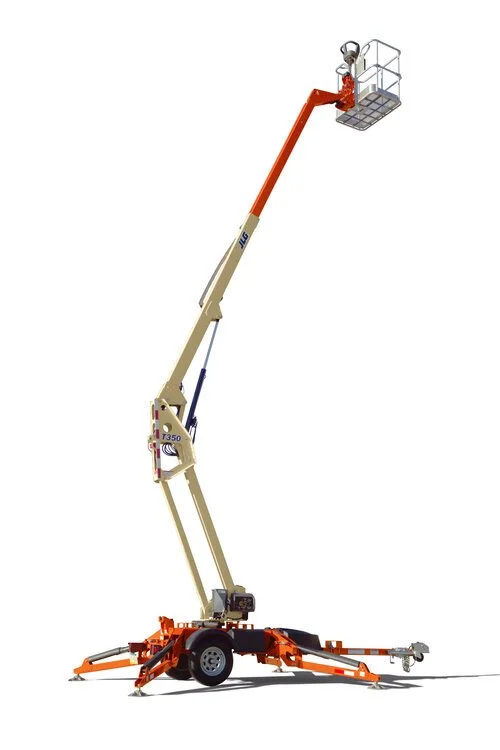

T350 Towable Boom Lift
Platform Height: 34 ft 5 in (10.5 m)
Working Height: 40 ft (12.2 m)
Horizontal Outreach: 18 ft 4 in (5.6 m)
Platform Capacity: 500 lbs (227 kg)
Platform Size: 2 ft 6 in x 4 ft (0.76 m x 1.22 m)
Power Source: 24V DC (four 6V batteries)
Optional: Gas or diesel-powered hydraulic power pack
Drive: Manual tow (not self-propelled)
Outrigger Leveling: Automatic or manual, self-leveling
Outrigger Footprint: ~11 ft x 11 ft (3.35 m x 3.35 m)
Towing Speed Rating: Up to 60 mph (96.5 km/h)
Weight: ~3,000–3,500 lbs (1,360–1,590 kg)
Length (stowed): ~20 ft (6.1 m)
Height (stowed): ~6.5 ft (2 m)
Width: 5 ft 6 in (1.68 m)
Turning Radius: N/A (towed)
Optional Features:
Hydraulic tool circuit
Flashing beacon
Platform rotator
Air line to platform
